Why Is My PC Not Recognizing a Newly Installed SSD?

TL;DR: Your PC is not recognizing the new SSD because it either needs to be initialized in Disk Management, is missing a drive letter, has a conflicting BIOS/UEFI setting, or has a loose or incompatible connection. Run through the steps below in order and you will nail the cause in minutes.

What You Need

• Access to Windows Disk Management or Diskpart
• Your motherboard manual (or the model number so you can pull the manual online)
• A Phillips screwdriver if you need to reseat the drive
• The SSD's spec sheet to confirm its interface (SATA, M.2 SATA, or M.2 NVMe)

Step 1: Check Disk Management First

Press Windows + X and choose Disk Management. Scroll down past your existing drives.

If the SSD appears but has no letter and shows as "Unallocated," it just needs to be initialized and formatted. That is the most common cause and takes two minutes to fix.

• Right-click the unallocated block, choose Initialize Disk, select GPT (or MBR for drives under 2 TB on older systems).
• Then right-click again, choose New Simple Volume, and follow the wizard.

If the drive shows up as "Online" with a volume but no letter, right-click and select Change Drive Letter and Paths, then assign any available letter.

Step 2: Confirm the Drive Appears in BIOS/UEFI

If the SSD is completely invisible in Disk Management, restart and enter your BIOS/UEFI (usually Delete, F2, or F10 at boot, depending on your board).

Look under Storage Configuration or SATA/M.2 Information.

• If the drive shows here but not in Windows, the issue is a driver or partition problem. Jump to Step 4.
• If the drive is also missing in BIOS, the problem is physical. Proceed to Step 3.

M.2 NVMe drives: Some boards default the M.2 slot to SATA mode. Check whether your SSD is NVMe and whether the slot is set to the correct mode. Some boards also disable a SATA port or M.2 slot when certain other slots are occupied, which is a bandwidth-sharing limitation. Your manual will map this out.

Step 3: Reseat and Inspect the Physical Connection

Power down completely, unplug from the wall, and open the case.

For SATA SSDs:

• Unplug both the data cable and the power cable, then reseat them firmly.
• Try a different SATA data cable and a different SATA port on the motherboard.
• Confirm the drive is getting power (a different power connector from the PSU).

For M.2 SSDs:

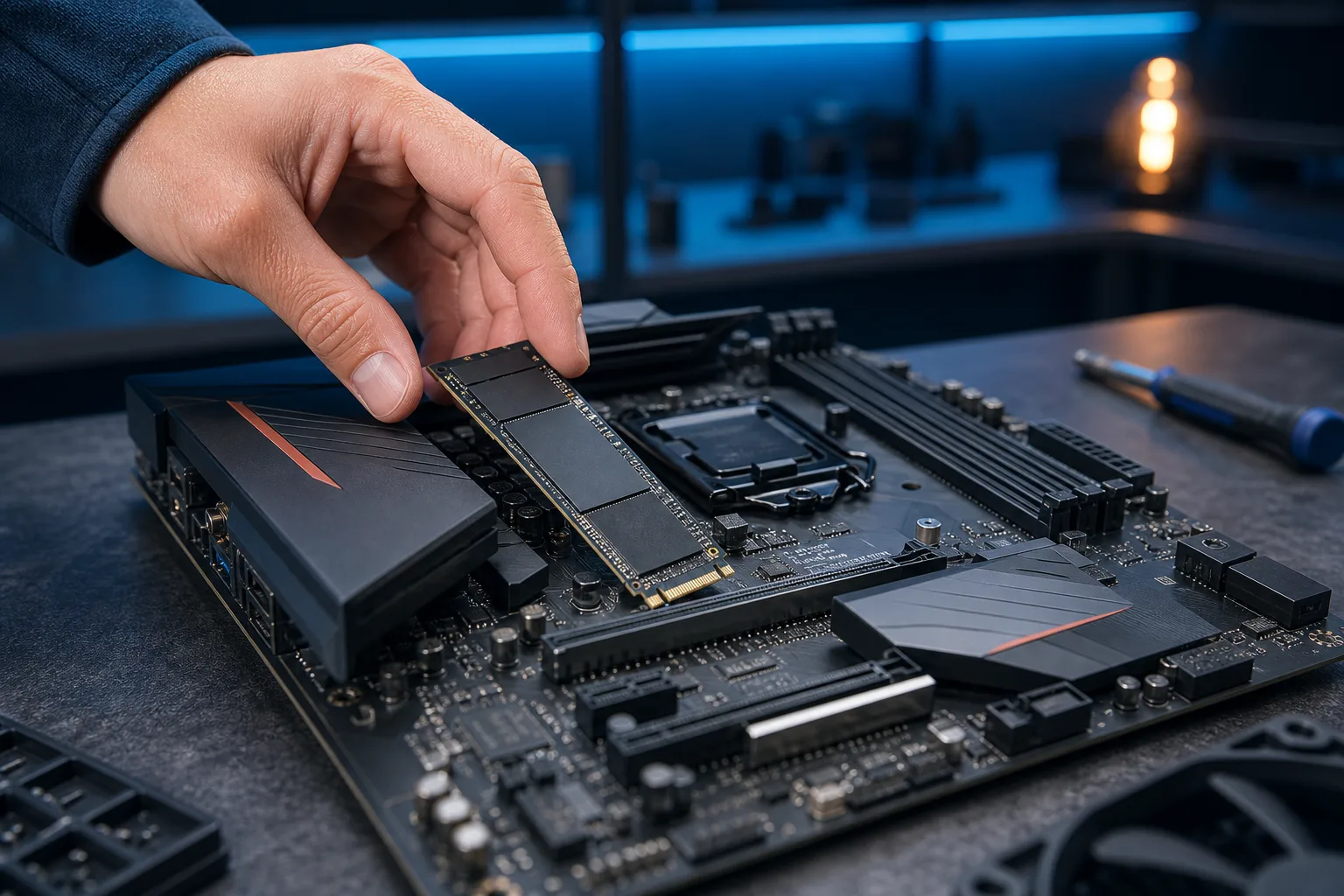

• Unscrew the M.2 screw, remove the drive, and reseat it at the correct angle (usually 30 degrees), then press flat and secure the screw.
• Check whether your board requires a thermal pad or heatsink to complete the slot circuit. Some boards will not post the drive without the standoff screw in place.

Also verify the drive key physically matches the slot. An M.2 NVMe drive (M-key) will not work in an M.2 SATA-only slot, even though it fits.

Computer acting up? Get a real diagnosis. Book a diagnostic

Step 4: Install or Update the NVMe Driver

Windows 10 and 11 include a generic NVMe driver, but some drives perform better or only initialize correctly with the manufacturer's driver. This matters most for PCIe 4.0 and 5.0 drives on newer boards.

• Open Device Manager, expand Disk Drives, and look for your SSD.
• If it shows with a yellow exclamation mark, right-click and choose Update Driver.
• For Samsung, WD, Seagate, or other branded NVMe drives, grab the driver from the manufacturer's support page.

Step 5: Check for a PCIe Lane or BIOS Compatibility Issue

This one catches builders off guard. Some older motherboards require a BIOS update to recognize newer, high-capacity SSDs. A PCIe 4.0 or 5.0 NVMe drive in an older board may simply not appear until the firmware is updated.

• Download the latest BIOS from your motherboard manufacturer's site.
• Flash it using a USB drive following the board's exact procedure. Read the manual. Flashing incorrectly can brick the board.
• After updating, re-enter BIOS and check the drive again.

Decision Table: Symptom vs. Most Likely Fix

Common Mistakes

Skipping BIOS before blaming Windows. If the drive is not in BIOS, no Windows fix will work. Always check BIOS first when the drive is invisible.

Assuming M.2 means NVMe. M.2 is a form factor, not an interface. A SATA M.2 drive in an NVMe-only slot (or vice versa) will not show up at all.

Formatting without backing up existing data. If the SSD is a secondary drive that already had data from another machine, initializing it will wipe it. Check what is on it before formatting.

Overtightening the M.2 screw. It should be snug, not cranked. Over-torquing can crack the PCB edge of the drive.

Ignoring bandwidth conflicts. Adding an M.2 drive can disable SATA ports 5 and 6 on many mid-range boards. Check the manual before assuming the drive is defective.

Bottom Line

Ninety-nine percent of "SSD not detected" issues come down to four things: the drive needs to be initialized in Windows, it has a BIOS mode mismatch, it is not seated properly, or the board needs a firmware update. Work through the steps above in order and you will have it sorted.

If you have run through everything and the drive still does not appear, it could be a defective SSD or a failed M.2 slot on the board. That is worth having a tech look at. Bring it into Fix My PC Store at 10140 Okeechobee Blvd, Suite B, West Palm Beach, or use remote support if you want eyes on your BIOS and Device Manager without leaving your desk. Initial checks are free for most standard in-store repairs. Call us at 561-819-9999, Monday through Friday 9 a.m. to 6 p.m. and Saturday 9 a.m. to 5 p.m.
